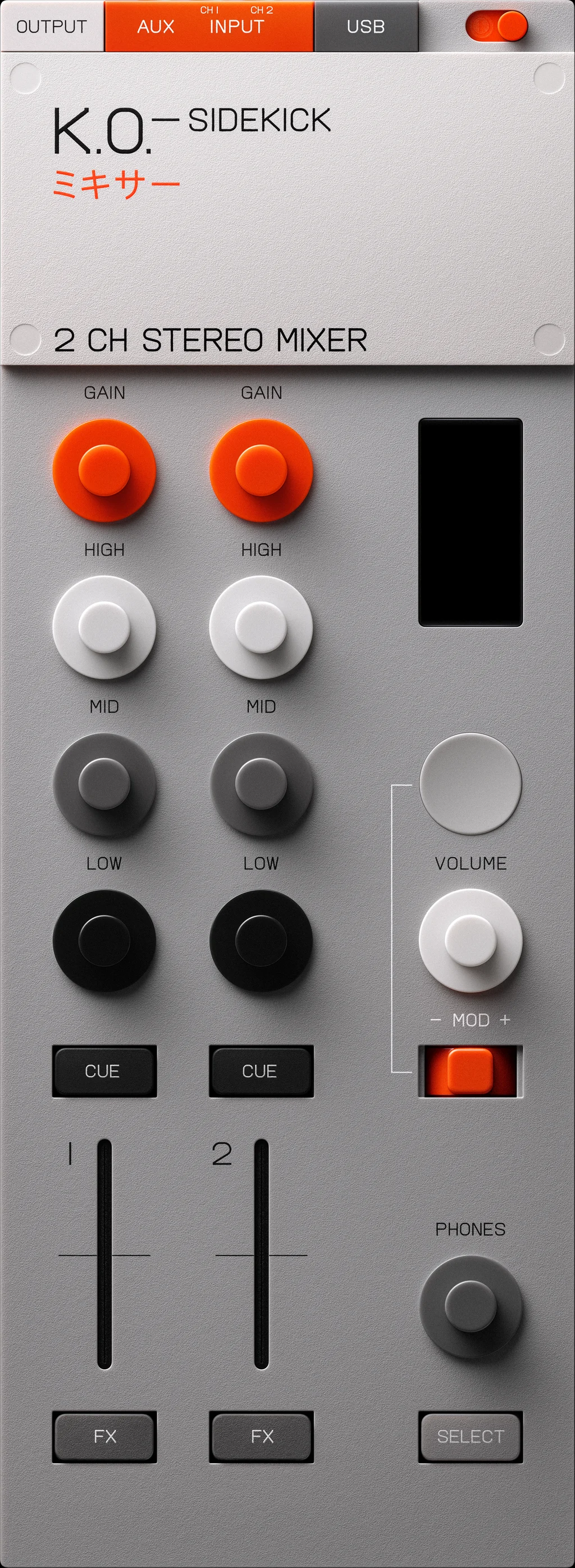

ep-136 K.O.–sidekick
the power companion
the plan was to build a mixer for the K.O.ii. but it
became more of an effect-box with a built-in sequencer.
quite cool actually. see it as a dj mixer with a 2-bar
looping effects-automator, or whatever you wanna call it.
the perfect companion for live-remixing your beats.
making them even more you. so... a mixer, an effect box,
a sequencer. we call it the K.O.–SIDEKICK.
became more of an effect-box with a built-in sequencer.
quite cool actually. see it as a dj mixer with a 2-bar
looping effects-automator, or whatever you wanna call it.
the perfect companion for live-remixing your beats.
making them even more you. so... a mixer, an effect box,
a sequencer. we call it the K.O.–SIDEKICK.
only
buy now
mix stereo out
aux/session in
two stereo channels
RUNS on just 2
AAA batteries
AAA batteries
±24db of gain
three mode compressor

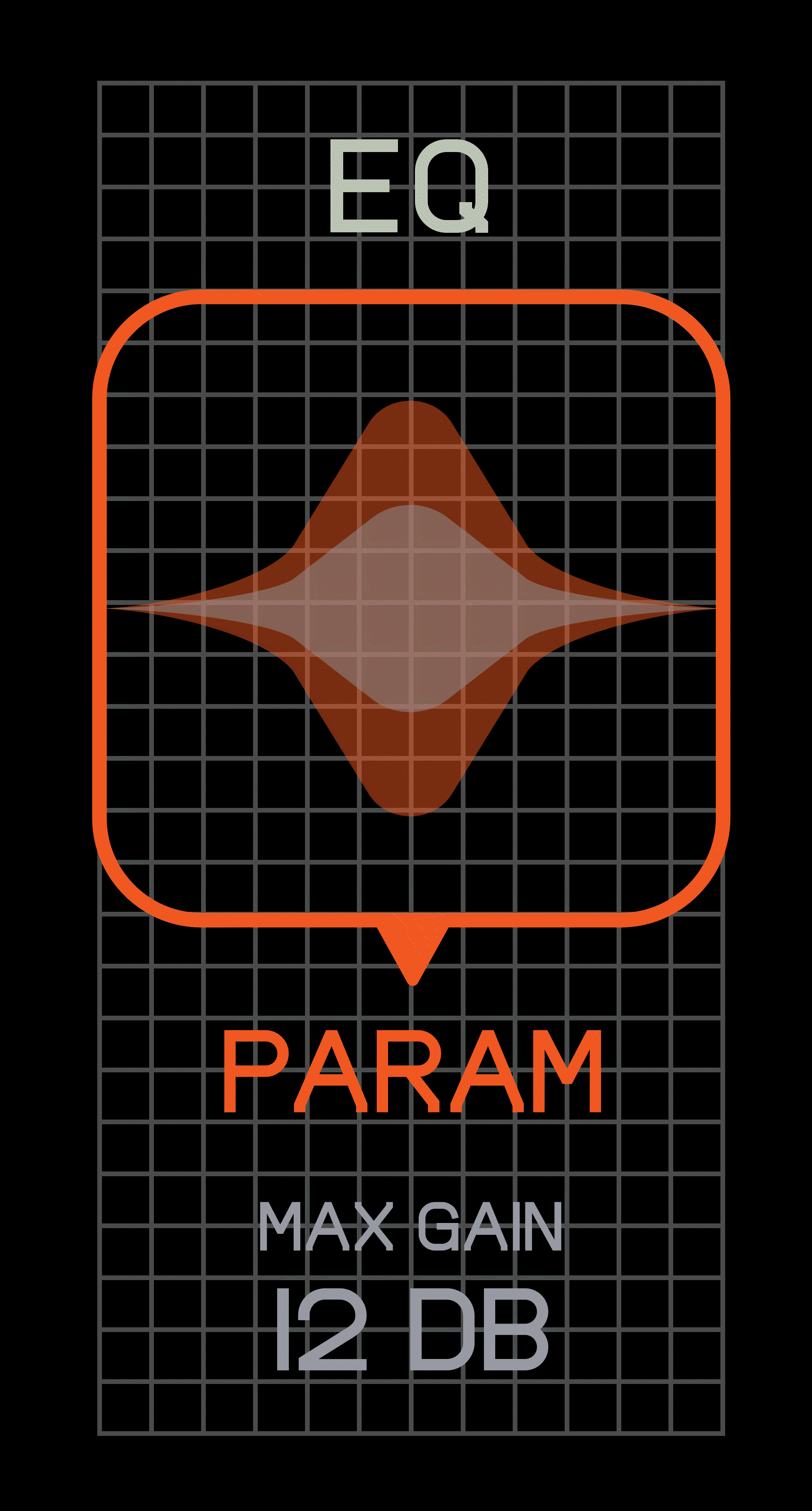

3 eq styles
headphone cue
beat match

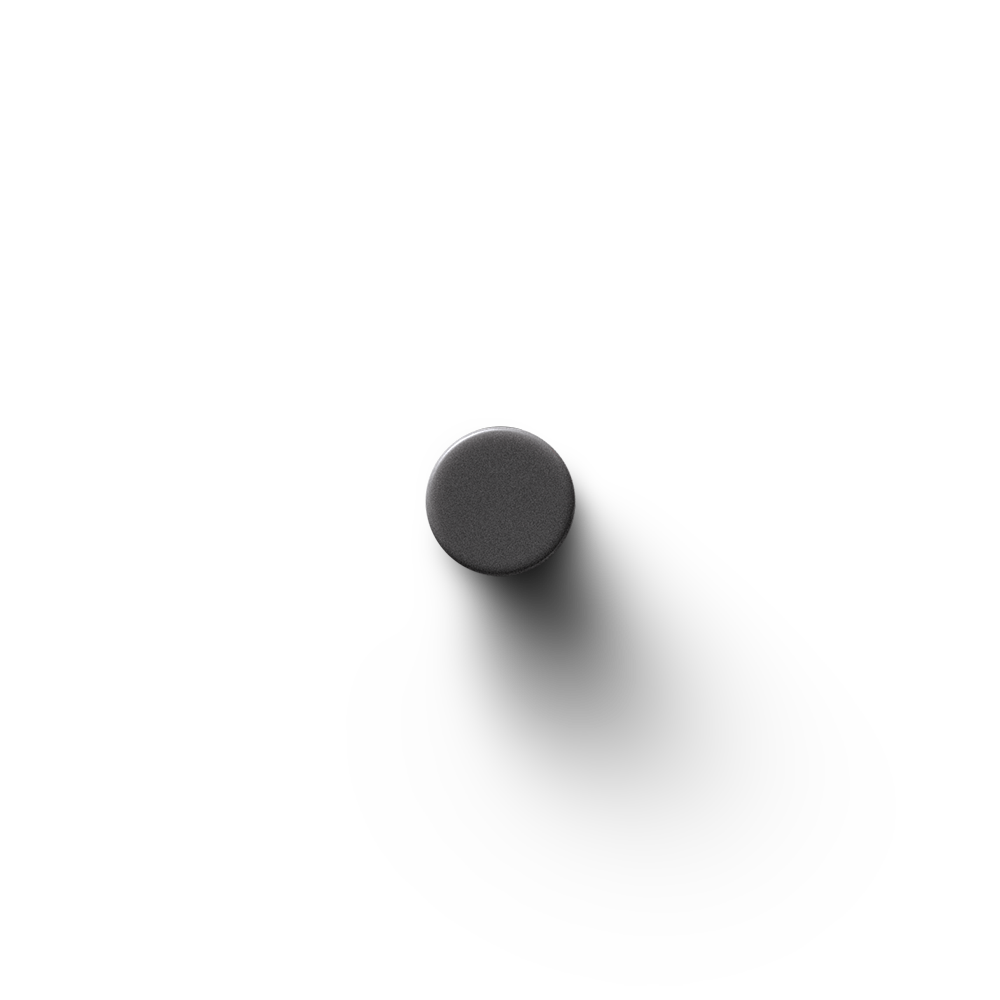

dedicated
level faders
level faders

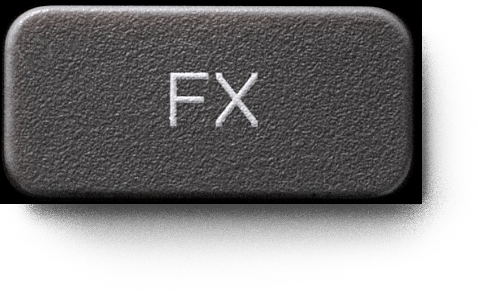

six performance effects
SERIEs OR
PARALLEL fx processing
PARALLEL fx processing
midi over usb-c
8 ins / 4 outs usb audio interface
ultra
responsive high resolution lcd screen
responsive high resolution lcd screen

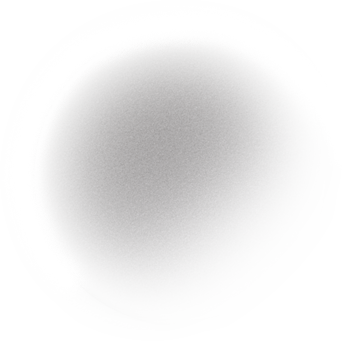

force sensitive effects PAD
fx automation
(motion control™)
(motion control™)

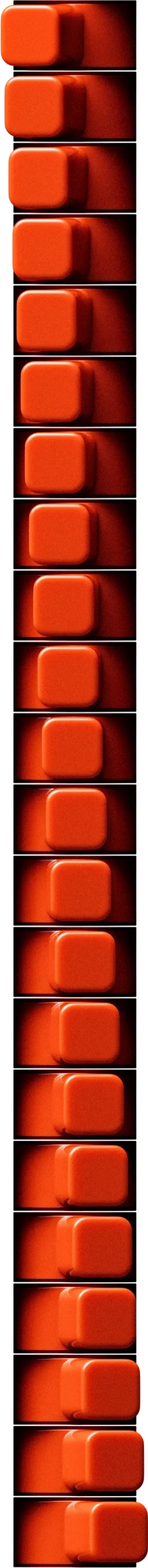

multi function
mod stick
mod stick

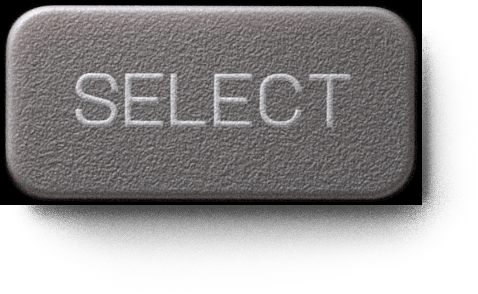

multifunctional select button

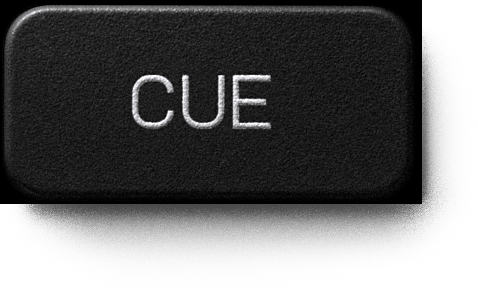

Cue output for headphones or
external send
external send
unmute
MUTE
DEMONSTRATION BY
studio - home - office - on stage
complete your setup
the K.O.–sidekick fits everywhere. use it for standalone mixing, as a studio companion, a desktop audio interface
or on stage. link multiple K.O.–sidekicks
to expand channels as needed.
or on stage. link multiple K.O.–sidekicks
to expand channels as needed.
only
buy now
EP pegs! snap together your EP
devices and build your dream setup.
devices and build your dream setup.
bundles and accessories
K.O.–sidekick
specifications
specifications
highlights
dimensions and weight
- 2 stereo channel strips
- 1 stereo aux, for a third “session” input
- usb audio interface / sound card
- dedicated controls for all params
- configurable EQ style (dj vs. studio)
- cue output for previews and sends
- dual fx with expressive controls
- dual channel beat-match
- tap-fx sequencer™
- ep series form factor
- powered by 2xAAA batteries, or USB-C
- high resolution custom LCD color screen
- pressure sensitive force pad
- high resolution mod stick
- 48khz / 24-bit audio processing
dimensions and weight
- 240 mm x 88 mm x 16 mm
- 9.45" x 3.46" x 0.63" inches
- 300g / 10.6 oz
audio input (ch1, ch2)
audio input (aux)
audio output (main, cue)
usb audio 2.0 (high-speed)
- impedance: 10k
- max level: 8dBu 2Vrms
- SNR: 105dBA (typical)
audio input (aux)
- impedance: 7k
- max level: 8dBu 2Vrms
audio output (main, cue)
- max level: 1.4Vrms
- SNR: 108dBA (typical)
usb audio 2.0 (high-speed)
- 8ch in
- 4ch out
K.O.–SIDEKICK
the power companion
the plan was to build a mixer for the K.O.II.
but it became more of an effect-box with a built-in sequencer. quite cool actually. see it as a dj mixer with a 2-bar looping effects-automator, or whatever you wanna call it. the perfect companion for
live-remixing your beats. making them even more you. so... a mixer, an effect box,
a sequencer. we call it the K.O.–SIDEKICK.
but it became more of an effect-box with a built-in sequencer. quite cool actually. see it as a dj mixer with a 2-bar looping effects-automator, or whatever you wanna call it. the perfect companion for
live-remixing your beats. making them even more you. so... a mixer, an effect box,
a sequencer. we call it the K.O.–SIDEKICK.
only
buy now
unmute
MUTE
DEMO BY
studio - home - office - on stage
complete your setup
the K.O.–sidekick fits everywhere. use it
for standalone mixing, as a studio companion,
a desktop audio interface or on stage.
link multiple K.O.–sidekicks to expand
channels as needed.
for standalone mixing, as a studio companion,
a desktop audio interface or on stage.
link multiple K.O.–sidekicks to expand
channels as needed.
only
buy now
EP pegs! snap together your EP
devices and build your dream setup.
devices and build your dream setup.
bundles and accessoris
EP–136
k.o.–sidekick
specifications
k.o.–sidekick
specifications
sidekick highlights
- 2 stereo channel strips
- 1 stereo aux, for a third “session” input
- usb audio interface / sound card
- dedicated controls for all params
- configurable EQ style (dj/studio/param)
- cue output for previews and sends
- six adjustable fx
- dual fx with expressive controls
- dual channel beat-match
- motion control™ fx sequencing
- ep series form factor
- powered by 2xAAA batteries, or USB-C
- high resolution custom LCD color screen
- pressure sensitive force pad
- high resolution mod stick
- 48khz / 24-bit audio processing
audio input (ch1, ch2)
- impedance: 10k
- max level: 8dBu 2Vrms
- SNR: 105dBA (typical)
audio input (aux)
- impedance: 7k
- max level: 8dBu 2Vrms
audio output (main, cue)
- max level: 1.4Vrms
- SNR: 108dBA (typical)
usb audio 2.0 (high-speed)
- 8ch in
- 4ch out
dimensions and weight
240 mm x 88 mm x 16 mm
9.45" x 3.46" x 0.63" inches
300g / 10.6 oz
240 mm x 88 mm x 16 mm
9.45" x 3.46" x 0.63" inches
300g / 10.6 oz
